Description
Product details

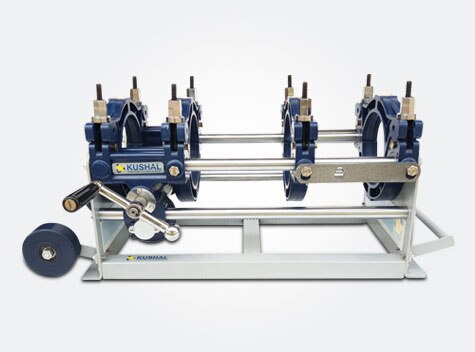

HDPE Butt Fusion Welding Machine - Application & Features : Suitable for butt fusion welding Of plastic pipes and fittings made Of PE, PP. and PVDF in construction site or workshop. Consists of basic frame, heating plate, planning tool, and support (for planning tool & heating plate). Removable PTFE coated heating plate with inbuilt Digital temperature control system with countdown timers for heating TI, T2 & cooling phase T5. Electric facer cutter With double cutting edge blades. Low starting pressure ensures reliable welding quality Of small pipes. It is made of lightweight and high strength material; simple structure and easy to operate. Trolley style wheel & handle system for easy mobility. Use of high quality pressure casting allows low weight without compromising strength and performance, while providing extra strength when welding not perfectly round pipe. Technical Specifications : Model. R160. R200. R250 Welding range (mm) R160 : 50.63.75.90.110.125.140.160 R200 : 63.75.90.110.125.140.160.180.200 R250 : 90.110.125.140.160.180.200.225.250 Heating Plate Max.Temp 270 Oc 270 Oc 270 Oc Temp. Deviation in surface <+-5 oc <+-5 oc <+-5 oc Working voltage 220V 50Hz 220V 50Hz 220V 50Hz Heating Plate Power 1.0 KW 1.3 KW 1.6 KW Net Weight Machine & Heater Support 56 KGS 63 KGS 89 KGS
